TECHNICAL SPECIFICATIONS
Dimensions: 2440x1220x12.5mm （The thickness can be customized according to customer requirements, with a thickness range of 12--40mm）
Double Side Pattern（6 mm +3 mm）
Weight: 38.5kg/unit
Load: 70 Tonnes
Material: HDPE
Temperature ranges： -50 degrees Celsius to +70 degrees Celsius
2 WAY & 4 WAY CONNECTOR
*****Raw material performance HDPE
Item | Data | Test Method | RE |
Solution flow rate, g/10 min | 1.00 | GB/T 3682.1 | |
Density, g/cm³ | 0.95 | GB/T 1033.2 | |
Tensile yield stress, MPa | 24.3 | GB/T1040.2 | |
Tensile fracture, % | > 672 | GB/T1040.2 |
Temporary access routes, haul roads and working platforms for construction and civil engineering projects.
Ground protection and temporary access systems for cranes, heavy plant and lifting operations.
Temporary access solutions for road, rail and major infrastructure projects.
Reliable temporary routes for utility construction, maintenance and field operations.
Our ground protection mats are designed to provide temporary access and help protect underlying surfaces across construction sites, infrastructure projects and other demanding working environments.
Manufactured from durable polymer materials, our mats are designed for repeated use in demanding site conditions. Material selection and product specifications vary by model and application.
Our mats create a temporary protective surface that helps distribute loads and reduce direct contact between vehicles or equipment and the underlying ground.

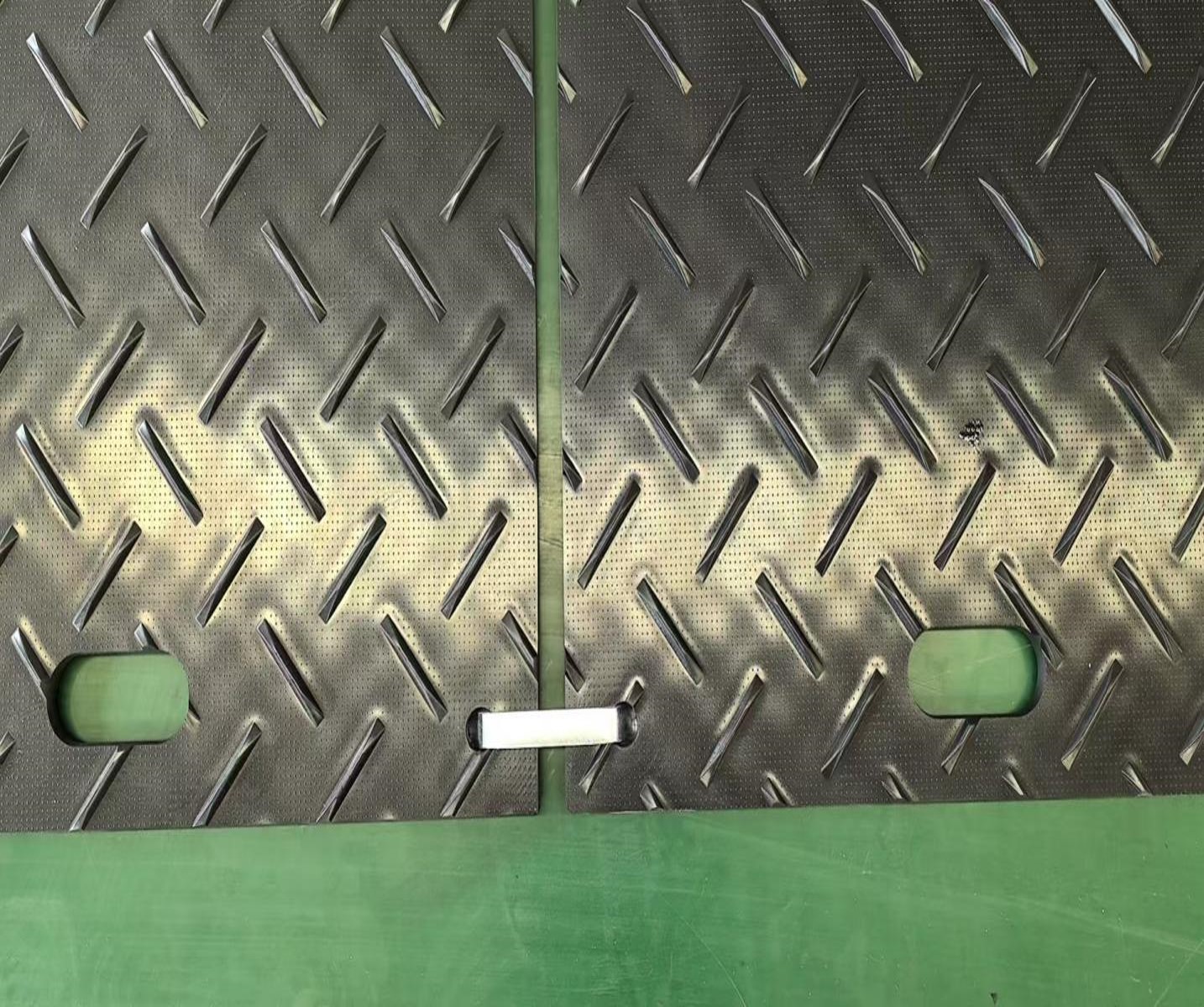

Purpose-designed surface patterns help provide traction for personnel, vehicles and equipment. Actual performance depends on the mat design, ground conditions and operating environment.
Designed for repeated deployment, our ground protection mats can be recovered, transported and reused across suitable projects, helping reduce the need for disposable temporary surfacing materials.
Depending on the product model, available connection options allow individual mats to be joined together to create temporary access routes and working areas suited to project requirements.
